Maxima ADSL is a prismatic skylight system designed to replace traditional strip/roof lights in industrial settings. It offers easier maintenance, reduced heat generation, and superior light diffusion and transmission.

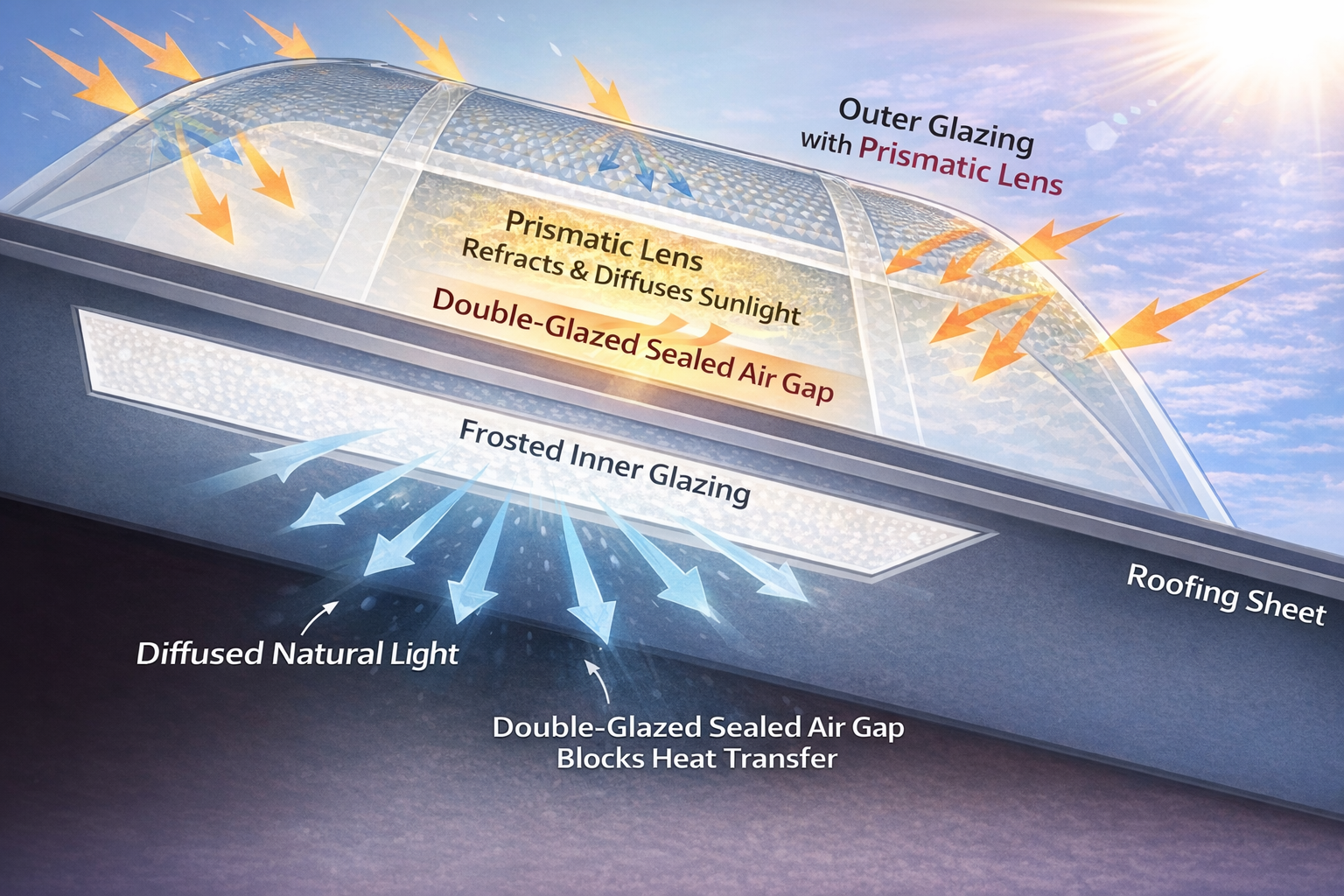

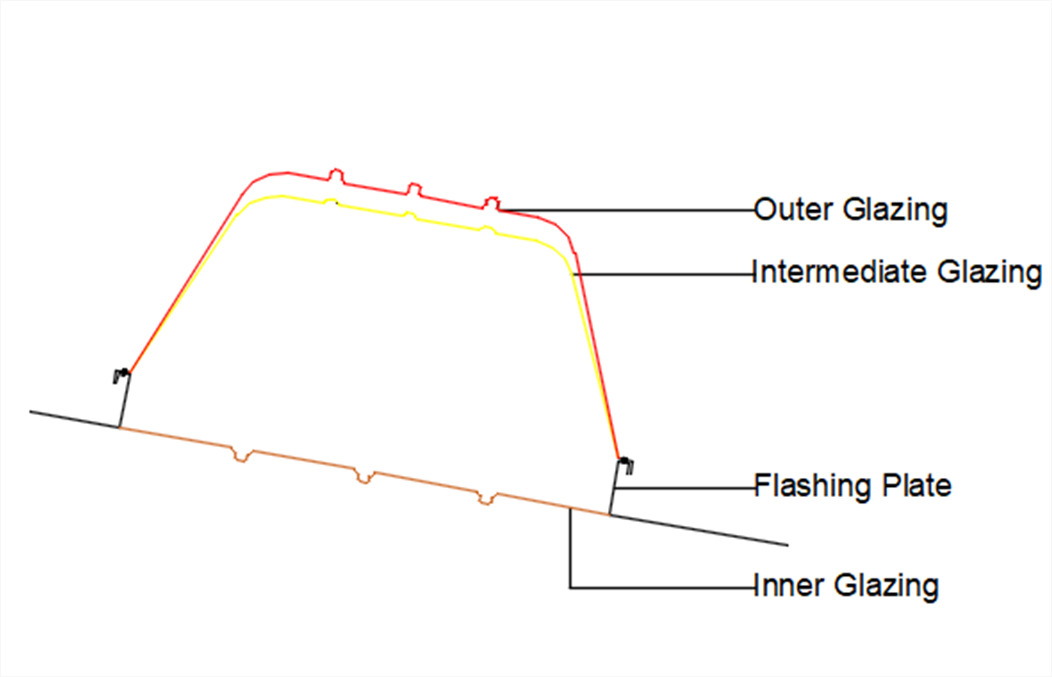

Maxima ADSL Skylight is a double/triple glazing passive solar daylighting system made of high-performance prismatic lenses with a light diffuser.
Barrel-shaped UV-resistant prismatic polymeric lens that captures sunlight from multiple directions and redirects it toward the diffuser.
Pigmented polycarbonate diffuser disperses light uniformly without glare, even in rainy or overcast conditions.

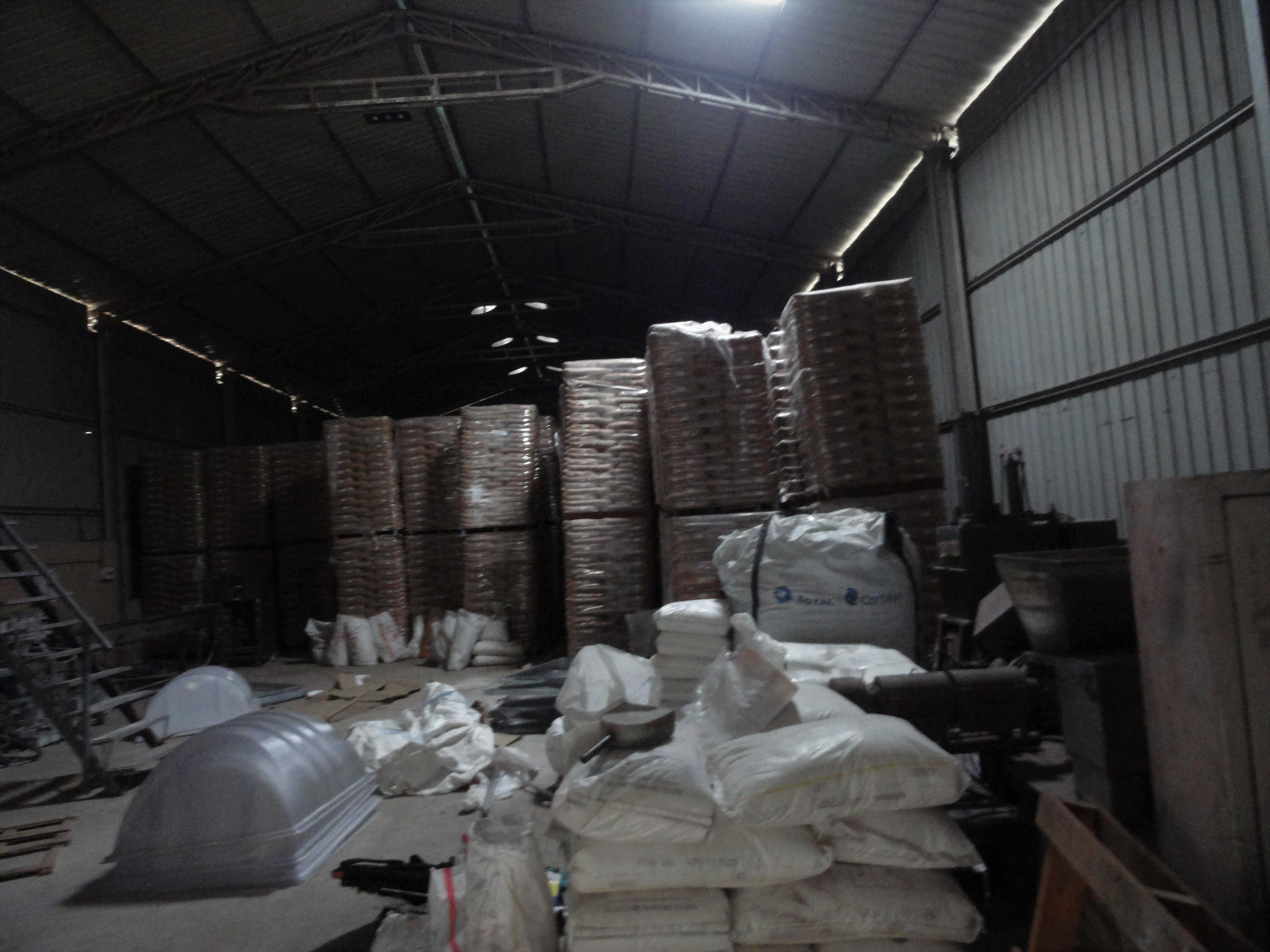

Before

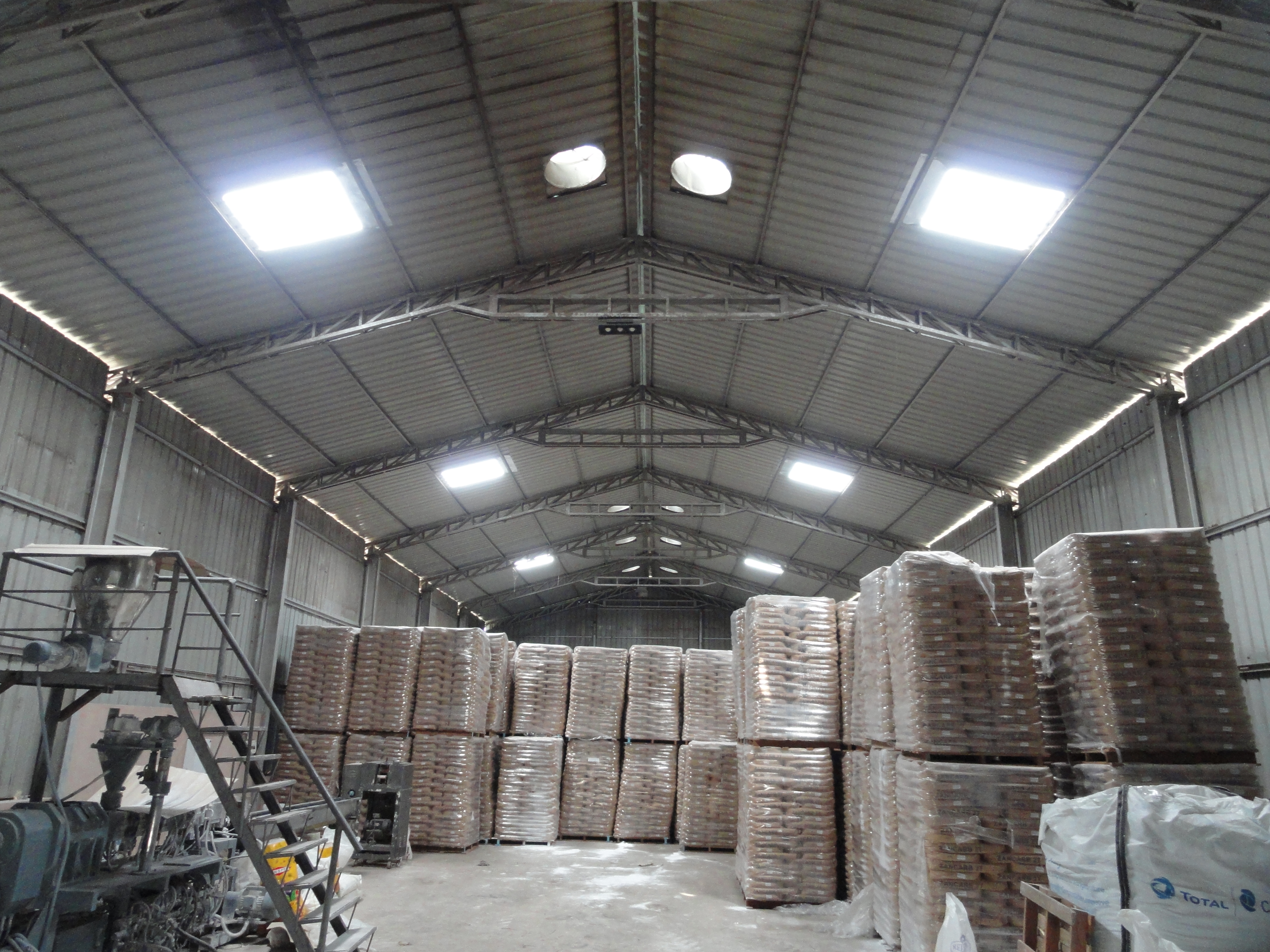

After
Size and light coverage estimation:
| Size | Clear Sky Mid Day | Clear Sky Morning & Evening | Area Coverage |
|---|---|---|---|
| LT-1100 × 900 | 12000 Lux | 500 Lux | 900–1000 Sqft |
| LT-550 × 500 | 9000 Lux | 250 Lux | 400–500 Sqft |

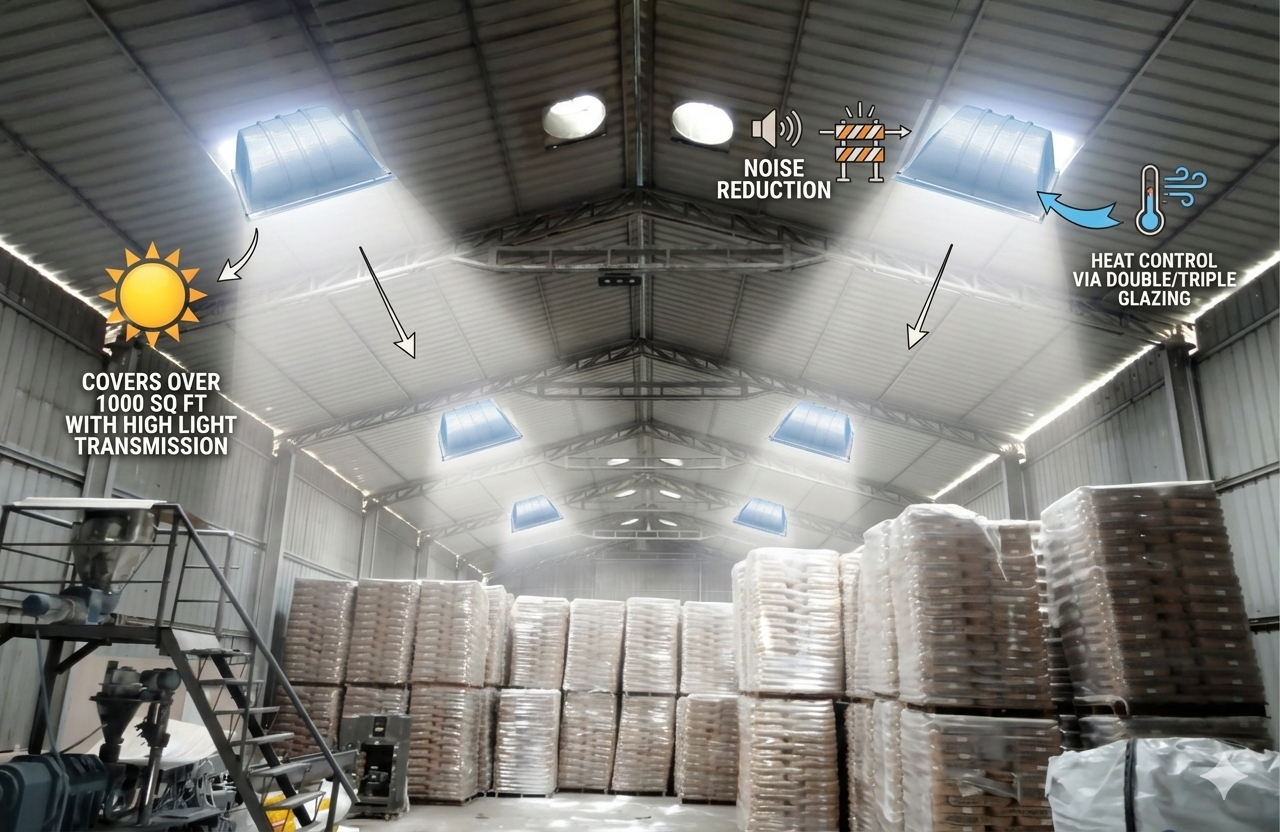

Captures rooftop sunlight and distributes it evenly indoors.
Performs well even under diffused weather conditions.
Only light is transmitted, not heat.
Blocks 99% UV radiation.
Life expectancy is 20 years.
Minimal—occasional dome cleaning.
